KZE-BC Thread Type Hydraulic Quick Coupling Used On Dump Tracks

Name: KZEBC Thread Type Hydraulic Quick Coupling Used On Dump Tracks
Brand: carterberg
Price: 1 USD

Brand Name : carterberg

Model Number : CB-5

Certification : IATF16949

Place of Origin : Shanghai, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 5000~20000 pc/month

Delivery Time : 7-20 work days

Packaging Details : carton

Material : Steel

Pressure : 4000PSI

Size : 3/4"

Temperature : -20℃to+120℃

Standard seal material : NBR

Compatible with : FASTER CVE

Application : dump tracks

Type : Socket and Plug

Contact Now

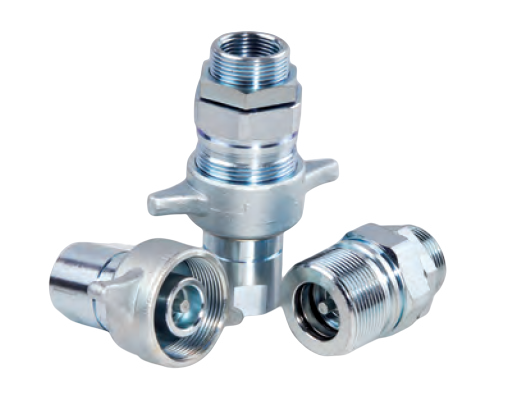

Used on dump tracks KZE-BC thread type hydraulic quick coupling

Applications: KZE-BC can widely used on dump tracks, Buses, Agricultural machinery and mobile contruction equipment.

Specifications:

Body Size(in)	3/4	1"
Rated Pressure(PSI)	4000	3000
Rated Flow(GPM)	25	50
Temperature Range(std seals)	-20℃ to +120℃
Standard seal material	NBR

KZE-BC Features:
1.KZE-BC is a thread-to-connect coupling, socket with wing nut can operate by manual with left over pressure.
2.Compatible with FASTER CVE series, HOLMBURY VCR series.

KZE-BC Thread Type Hydraulic Quick Coupling Used On Dump Tracks

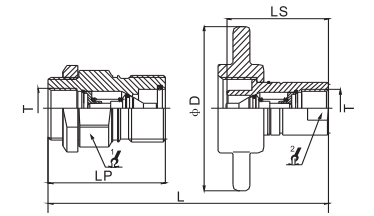

PARTNO.	T	￠D	HEX1	HEX2	L	LS	LP
CB-S6S-BC	G3/4	115.4	46	33	132.5	78	78
CB-S8S-BC	1"	115.4	55	40	145	83	83

KZE-BC Thread Type Hydraulic Quick Coupling Used On Dump Tracks
