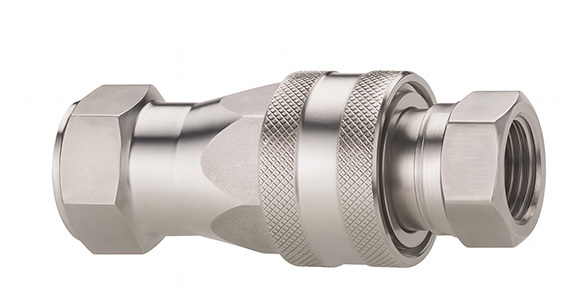

CB-SPM-10F ISO 7241-A Hydraulic Quick Coupling (Plug & Socket Set)
Carterberg CB-SP-10F is a robust hydraulic quick coupling set designed to meet ISO 7241-A standards. This model includes a complete set of both plug and socket couplers, ensuring fast, secure, and leak-free connection for fluid transfer systems. Manufactured with precision and durability in mind, it’s ideal for demanding industrial and mobile hydraulic applications.
The CB-SP-10F is engineered to offer full compatibility with other ISO 7241-A standard couplings on the market, allowing for seamless interchange with brands such as Parker, Faster, and Hansen. Its sleeve-locking mechanism ensures safe operation, while the hardened components provide long-term reliability under pressure.
Key Features
• ISO 7241-A Standard Compatibility
Fully interchangeable with other ISO 7241-A standard couplers from global manufacturers.
• Corrosion-Resistant Stainless Steel
Provides long service life in demanding environments.
• Complete Set: Plug + Socket
Includes both male and female components in one SKU for convenient installation.
• Poppet Valve Design
Minimizes fluid loss during disconnection while preventing contamination.
• Dust Caps Optional
Helps protect coupler internals and extend service life.
• Wide Size Range Available
From 1/4” to 1”, suitable for various flow requirements.
Typical Applications
• Hydraulic equipment in construction and agriculture
• Mobile equipment quick-disconnect systems
• General fluid power applications
• Stainless steel hydraulic systems for corrosive environments
Technical Specifications
| Body Size | PARTNO. | LS | Φ D | HS | A | T |
| 1/4" | CB-S2M-10F | 50 | 26 | 19*6 | 13 | G1/4 NPT1/4 |
| 3/8" | CB-S3M-10F | 60 | 31.5 | 22*6 | 14 | G3/8 NPT3/8 |
| 1/2" | CB-S4M-10F | 68 | 39 | 27*6 | 16 | G1/2 NPT1/2 |
| 3/4" | CB-S6M-10F | 80 | 48 | 34*6 | 18 | G3/4 NPT3/4 |
| 1" | CB-S8M-10F | 99.5 | 53 | 41*6 | 21 | G1 NPT1 |
| 1-1/4" | CB-S10M-10F | 112 | 69 | 50*6 | 25 | G1-1/4 NPT1-1/4 |
| 1-1/2" | CB-S12M-10F | 127.5 | 84.5 | 60*6 | 25.5 | G1-1/2 NPT1-1/2 |
| 2" | CB-S16M-10F | 158 | 99 | 75*6 | 26 | G2 NPT2 |
| Body Size | PARTNO. | LP | C | HP | A | T |
| 1/4" | CB-P2M-10F | 35.5 | 15 | 19*6 | 13 | G1/4 NPT1/4 |
| 3/8" | CB-P3M-10F | 42 | 26.5 | 22*6 | 14 | G3/8 NPT3/8 |
| 1/2" | CB-P4M-10F | 46 | 26.5 | 27*6 | 16 | G1/2 NPT1/2 |
| 3/4" | CB-P6M-10F | 54 | 28 | 34*6 | 18 | G3/4 NPT3/4 |
| 1" | CB-P8M-10F | 65.5 | 35 | 41*6 | 21 | G1 NPT1 |
| 1-1/4" | CB-P10M-10F | 70 | 45 | 50*6 | 25 | G1-1/4 NPT1-1/4 |
| 1-1/2" | CB-P12M-10F | 78 | 51 | 60*6 | 25.5 | G1-1/2 NPT1-1/2 |
| 2" | CB-P16M-10F | 98 | 61 | 75*6 | 26 | G2 NPT2 |
Interchange Information
The CB-SPM-10F model from Carterberg is designed in full accordance with ISO 7241-A standards, ensuring compatibility with a wide range of brands in the market. This hydraulic quick coupling can be interchanged with similar models from Parker, Hansen, Faster, and other leading manufacturers. Whether you're replacing existing components or standardizing across systems, this coupler delivers a reliable and seamless fit.
Related Products in Carterberg ISO 7241-A Series
Looking for other sizes or configurations in the ISO 7241-A series? Explore Carterberg’s full line of hydraulic quick couplings, including:
These models share the same high-performance standards and dimensional compatibility, giving you a wide range of choices for different hydraulic applications.
Request a Custom ISO 7241-A Coupling Solution
Need a different port thread or material? Carterberg provides tailored hydraulic quick coupling solutions to fit your system requirements.
|
|
